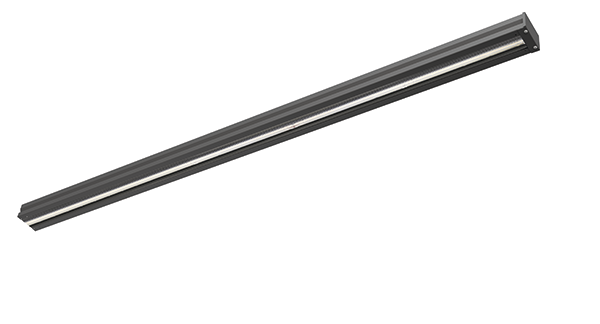

GDO SYSTEM
Ottica Lenticolare Tunnel /Tunnel lenticular optical / Optique lenticulaire tunnel / Optica Lenticular Tunel
| Codice | Lumen | Potenza (W) | Relamping (W) | Fotometrie | Disegno 3D |
|---|---|---|---|---|---|
| GDS0625 | 1560 | 10 | DOWNLOAD | DOWNLOAD | |
| GDS0650 | 3034 | 20,5 | DOWNLOAD | DOWNLOAD | |
| GDS0675 | 3749 | 23 | DOWNLOAD | DOWNLOAD | |
| GDS1125 | 3120 | 20 | DOWNLOAD | DOWNLOAD | |
| GDS1150 | 6160 | 41,5 | DOWNLOAD | DOWNLOAD | |
| GDS1175 | 7498 | 46 | DOWNLOAD | DOWNLOAD | |
| GDS1425 | 3900 | 25 | DOWNLOAD | DOWNLOAD | |
| GDS1450 | 7700 | 52 | DOWNLOAD | DOWNLOAD | |
| GDS1475 | 9454 | 58 | DOWNLOAD | DOWNLOAD | |
| GDS1625 | 4680 | 30 | DOWNLOAD | DOWNLOAD | |
| GDS1650 | 9250 | 62,5 | DOWNLOAD | DOWNLOAD | |
| GDS1675 | 11410 | 70 | DOWNLOAD | DOWNLOAD | |
| GDS2225 | 6240 | 40 | DOWNLOAD | DOWNLOAD | |
| GDS2250 | 12284 | 83 | DOWNLOAD | DOWNLOAD | |
| GDS2275 | 15322 | 94 | DOWNLOAD | DOWNLOAD |
Dimensions
Curves
Applicazioni
plafone
sospensione
Accessori
GDOS-F
Terminale di chiusura / End cover / Embout de fermeture / Tapa de cierre
BDS-A
Connettore di alimentazione / Power connector / Connecteur d'alimentation / Conector de alimentacion
GDOS-G
Giunto lineare a scomparsa / Hidden Linear joint / Elément de jonction linéaire invisible / Junto lineal retràctil
GDOS-KS
Sospensione semplice con occhiello / Suspension fixing kit with eyebold / Suspension simple avec ceillet / Suspension simple con ojal
GDOS-KSP
Fissaggio a plafone / Ceiling fixing system / Fixation au plafond / Fijacion a techo
GDOS-KSE
Staffa esterna per sospensione / external suspension bracket / Etrier externe pou suspension / Soporte externo para suspension
Finiture
nero
RAL 9005
bianco
RAL 9016
